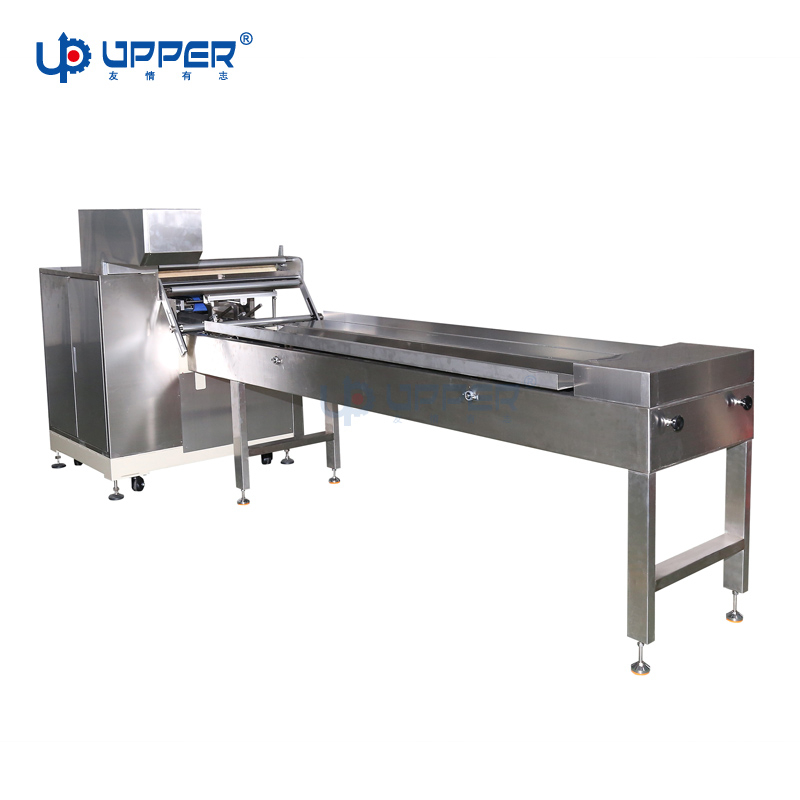

Reciprocating Multi-packing Cake Packing Machine

1. Three servo motor versions, high-speed output, stable operation, time-saving, and film.
2. Interface features easy and quick setting and operation.
3. Self-failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature-independent PID control, more suitable for packaging different materials.
6. Positioned stop function without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrades.

Model:
UPB-750L

Availability:



Inquire

Product Description

Reciprocating multi-packing cake packing machine

Overview

Advantages:

1. Upper is a professional manufacturer of the automatic dough divider rounder.

2. Support customized packing machine solutions.

3. Engineer teams with over 20 years of experience in packing machines.

4. CE, ISO, and Quality Assurance Certifications available.

5. Patent certificate.

6. High-tech enterprises certificate.

7. Fast delivery & professional after-sales service.

Technical feactures:

1. This equipment could be connected to the production line directly.

2. Full automatic feeding-extruding-cutting-packing-date printing, all in one line.

3. Multi-variable frequency speed control, servo drive control, stable running, high control preciseness, and low energy consumption.

4. Colored touch screen, easy operation and adjustment, fault display, and data storage function to operate easily for changing different size products.

5. Equipment designed by products' characteristics to avoid extruding products. When the product is in a fail condition, it can remove the unacceptable without stopping the machine, guaranteeing the packing process continuously and stably.

6. Full stainless steel structure, humanized design, easy installation, easy disassembly, and easy maintenance.

Packaging Machine Manufaturer-Foshan Upper Machinery

Parameters

Product Name	Reciprocating Multi-packing Cake Packing Machine
Product Size	L 120-500mm, W 35-200mm, H 5-70mm
Packing Capacity	32-160 bags/min
Packing Film Width	90-450mm
Packing Material	Composite films such as OPP/PE, OPP/CPP
Net Weight	600kg
Power Supply	220V 50Hz
Total Power	3.2kw
Outer Size	4000×950×1600mm

Application

Automatically pack many kinds of solid and regular material, such as biscuit packing, bakery bread packing, chocolate bar packing, energy bar packing, cupcake packing, wafer biscuit packing, instant noodle packing, daily products, hardware, and so on.
