Advantages:
1. Upper is a professional manufacturer of the automatic biscuit packing machine.
2. Support customized manually feeding or automatic feeding packing machine solutions.
3. Engineer teams with over 20 years of experience in packing machines.
4. CE, ISO, and Quality Assurance Certifications available.
5. Patent certificate.
6. High-tech enterprises certificate.
7. Fast delivery & professional after-sales service.
Technical feactures:

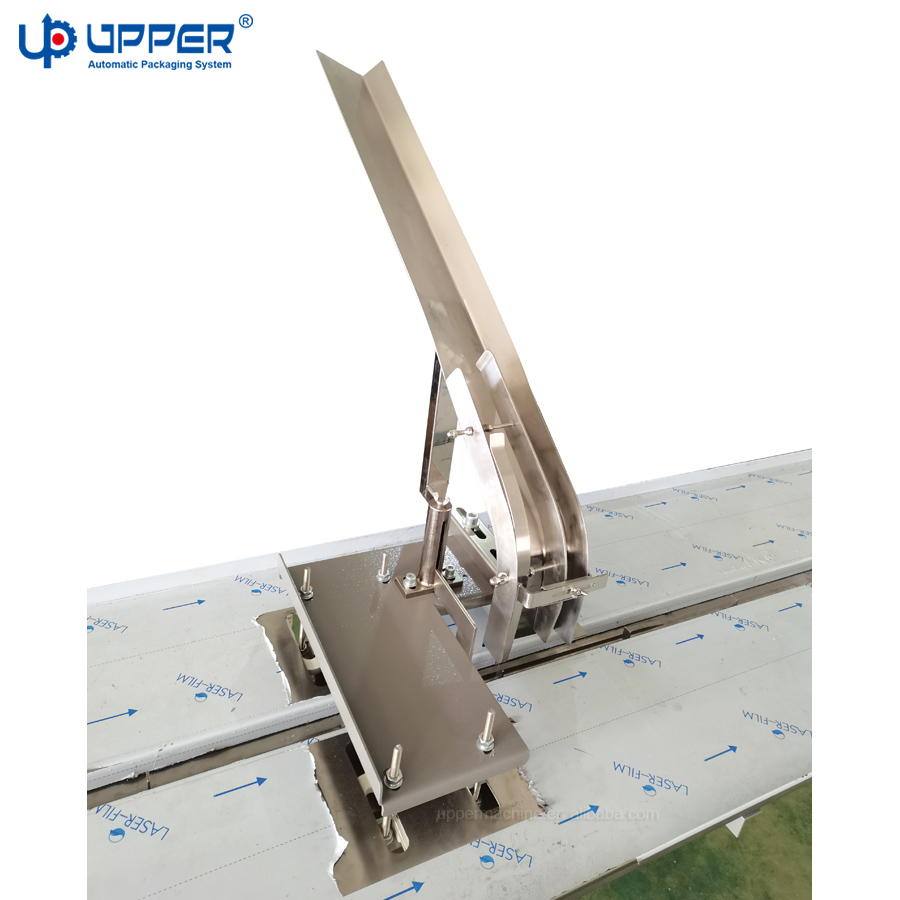

1. Manually put the biscuit into the two feeder.
2. It can be two layers or three layers packing ways.
3. Multi-variable frequency speed control, servo drive control, stable running, high control preciseness, and low energy consumption.
4. Colored touch screen, easy operation, adjustment, fault display, data storage function, easy changing different size products.
5. Designed by product characteristics to avoid extruding products. When the product is in fail condition, remove the unacceptable one without the machine stopping to guarantee the production and packing process continuously and stably.
6. Full stainless steel structure. Humanized design, easy installation, disassembly, and maintenance.
Product Name | Double Biscuit Feeder Pillow Packing Machine |
Product Size | L 60-160mm, W 35-100mm, H 5-35mm |
Packing Capacity | 32-225 bags/min |
Packing Film Width | 90-220mm |
Packing Material | Composite films such as OPP/PE, OPP/CPP |
Net Weight | 450 kg |
Power Supply | 220V 50Hz |
Total Power | 3.2 kw |
Outer Size | 4000×920×1500mm |
Application
| Biscuit production & package industry |
